Location：Home » Product Center » Tubular motor » SF25-E (DC) TUBULAR MOTOR

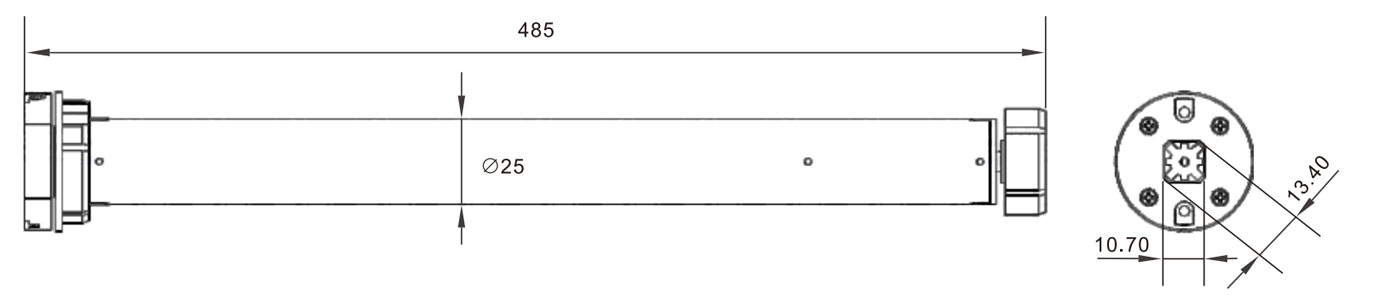

    SF25-E (DC) TUBULAR MOTOR Exploded Drawing

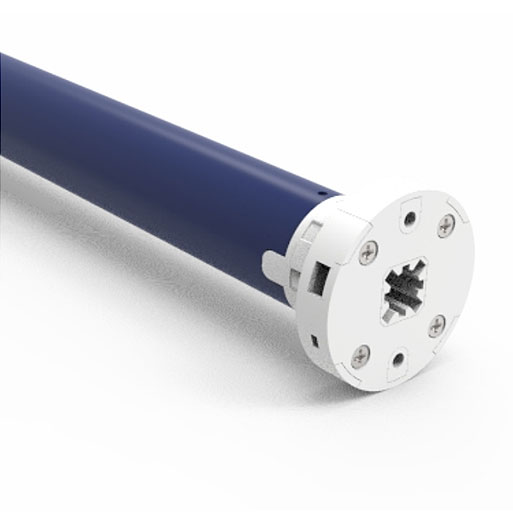

    tubular motorSF25-E(DC)

    DC motor drive, stable performance, low sound, long life

    Electronic limit, easy to install and debug, can realize three-point limit function

    Built-in receiver, can realize multi-hole function control

    With overload protection function

    Use SCVE
Technical SpecificationsDetailed parameter analysis, facilitating equipment selection and integration
  • ModelSF25-0.8E
    SF25-1.1E
  • Torque (N.m)0.8
    0.1
  • Rotating (rpm)40
    30
  • Rated Voltage (V)100~230
    100~230
  • Rated Frequency (Hz)433
    433
  • Rated Power (W)8
    10
  • Rated Current (A)0.61
    0.8
  • Protection Class (IP)IP44
    IP44
  • Running Time (min)≥4
    ≥4
  • Net Weight (kg)1.7
    1.7

SCVE

SCVEProduct advantagesDetailed parameter analysis, facilitating equipment selection and integration
  • SCVE

    Diameter 25mm

  • SCVE

    Electronic limit

  • SCVE

    Built-in Receiver

SCVEProduct CaseThe case demonstrates strength and stable operation can be traced.
  • SCVE
  • SCVE
  • SCVE
  • SCVE
  • SCVE
  • SCVE
  • SCVE
  • SCVE
